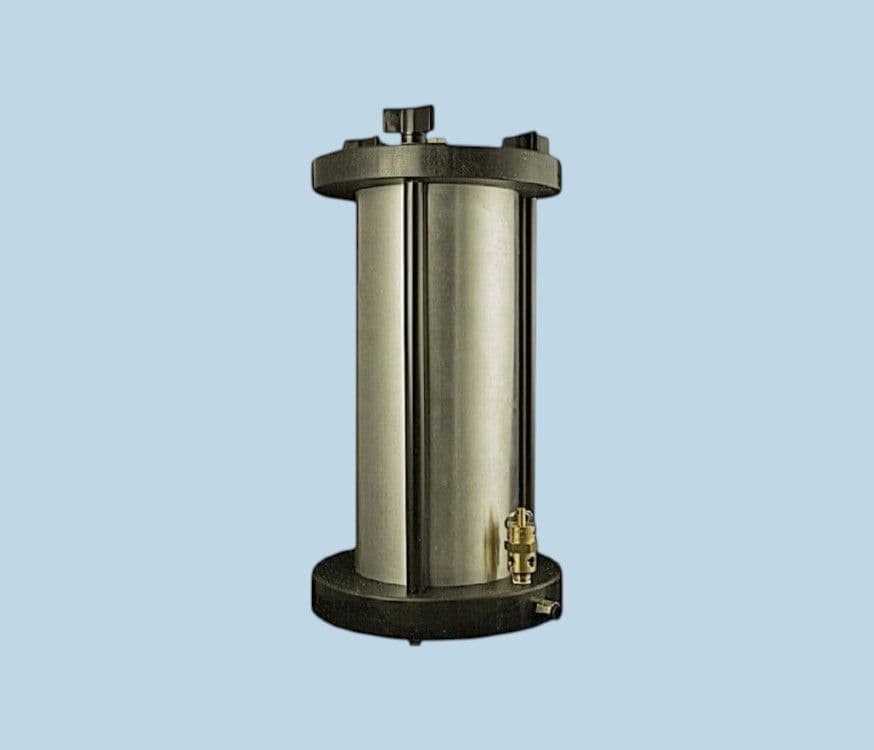

500 Gram (1 lb) Pressure Pot TS1205
Product Code: TS1205
Price: £435.00
Description
Pressure pot for cyanoacrylates, UV's, anaerobics and other low to medium viscosity fluids. No pouring needed; you just drop the bottle right into the tank, seal with wing nuts, and pressurise.
Includes an air port to pressurize the tank, and a pop-off valve set at around 75 psi for safety. Accepts adhesive bottles 250gm and 500gm or containers placed inside the chamber. Works with 1/4" - 6mm OD tubing and fluid lines. Easy connect to any adjustable air regulator with the 6mm quick fitting. Use with any regulator to control the air pressure.
Part ID: TS1205
Outer Size: 3.48" W x 10.0" H (88.6mm W x 254.0mm H)
Inner Chamber: 3.25" W x 7.125" H (82.55mm W x 180.97mm H)
Weight: 1.0kg
Viscosity Range: Liquids up to 25,000 CPS
Max Fluid Pressure: 60 psi (4 Bar)
Air Inlet: 6mm push fit
Material Outlet: 1/4" NPT or male luer to fluid line
Materials: Aluminium body and 6-6 Nylon (top and base)
Commodity Code: 90289090
Origin: US
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Includes an air port to pressurize the tank, and a pop-off valve set at around 75 psi for safety. Accepts adhesive bottles 250gm and 500gm or containers placed inside the chamber. Works with 1/4" - 6mm OD tubing and fluid lines. Easy connect to any adjustable air regulator with the 6mm quick fitting. Use with any regulator to control the air pressure.
Part ID: TS1205
Outer Size: 3.48" W x 10.0" H (88.6mm W x 254.0mm H)
Inner Chamber: 3.25" W x 7.125" H (82.55mm W x 180.97mm H)
Weight: 1.0kg
Viscosity Range: Liquids up to 25,000 CPS
Max Fluid Pressure: 60 psi (4 Bar)
Air Inlet: 6mm push fit
Material Outlet: 1/4" NPT or male luer to fluid line
Materials: Aluminium body and 6-6 Nylon (top and base)
Commodity Code: 90289090
Origin: US
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for cyanoacrylates, UV cure and adhesives
- Small footprint
- Up to 60 psi safety valve
- Use with 1/4" or 6mm OD tubing Quick release air exhaust
- 6mm push fit air in
- 1 Year Warranty
