TS5000DMP-DCX Auger Valve

Description

Rotary valves use a rotary feed screw (auger) to dispense fluid with a positive displacement action, allowing for ultra-precise control of the dispensing process. The unique design ensures that material is constantly present at the feed screw inlet, while the controlled rotation of the feed screw moves the material from the feed to the discharge point. Discrete control of the forward and reverse rotations of the feed screw controls the amount of material discharged. The unique DMP (Disposable Material Path) valve (TS5000DMP) offers a choice of 3 different feed screw sizes (6, 8 and 16-pitch), all made of Delrin.

The DMP Valve has a hinged doorway that opens easily so the disposable auger can be removed and replaced within seconds, while the line is still in operation, significantly reducing downtime and waste. The choice of left, right or centre hinge openings makes the valve suitable for mounting on most automated systems. This version is right opening. This valve is suited to dispensing solder pastes, die attach, SMT adhesives, thermal compounds, pre-mixed and frozen epoxies, chip encapsulation and dam writing. Control the TS5000DMP valves with the TS500R digital controller.

Part ID: TS5000DMP-DCX
Size: 149mm L x 90mm W
Weight: 350 g
Wetted Parts: Delrin, Viton, Nylon
Viscosity Range: Min 30k CPS - 1.3 Million CPS
Min Shot Size: 0.020" (0.508mm) 0.00003cc
Repeatability: +/- 0.20%
Cycles Per Minute Max: 240
Max Fluid Pressure: 30 psi ( 2.1 Bar)
Material Inlet: Female Luer Lock
Material Outlet: Male Luer Lock
Valve Mounting: 1.0 Inch Wide Channel

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Ideal for pastes, solder pastes, fluxes, SMT adhesives
Precise and consistent shot sizes down to micro-litres
Motor reverse capability for zero ooze/ drips
Quick field replaceable wetted parts
Adjustable dispense rates
Zero cleanup with disposable feedpath components
Wide variety of configurations
Includes a 6 pitch, 8 pitch and 16 pitch feedpath
Simple to control using the TS500R digital controller

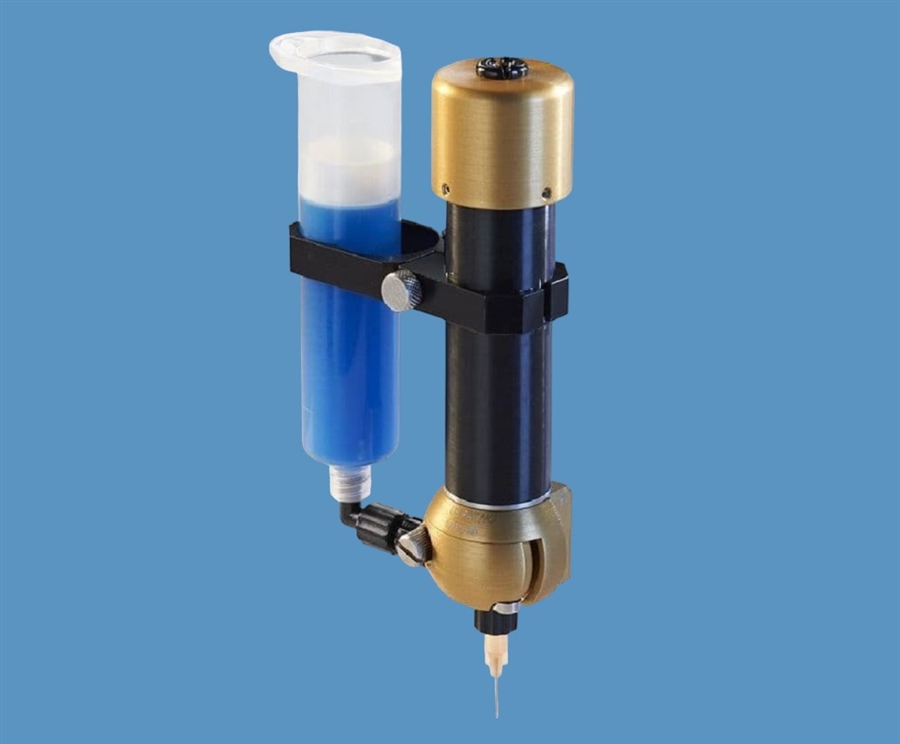

Motor Driven DMP Auger Valve TS5000DMP-DCX
