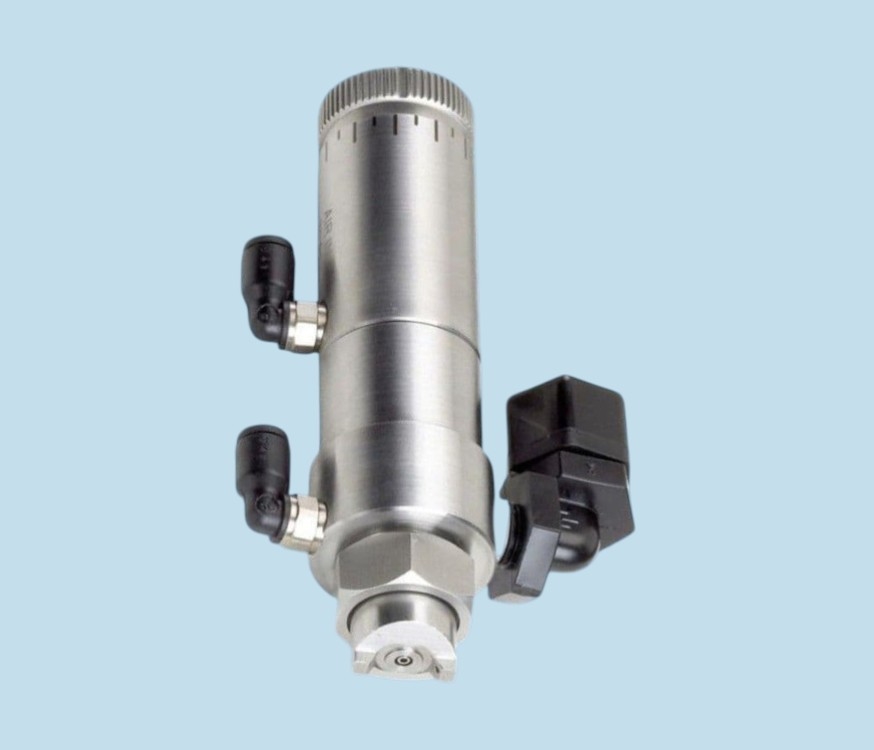

Stainless Spray Valve 0.014" Fan TS5540-014F
Product Code: TS5540-014F
Price: £1,483.00
Description
The TS5540 spray valve provides precise, consistent coating of low to medium viscosity fluids, including lubricants (oil and grease), activators and inks. Micro-litre to millilitre amounts can be reliably dispensed in round patterns with diameters ranging from 1/4 to 3.0 inches (6.35 to 76.2 mm) and in fan patterns with widths up to 6.0 inches (152 mm). The TS5540-014F has a 0.014" (0.356mm) opening diameter fan spray nozzle.
The combination of adjustable fluid flow, adjustable nozzle air and post-air cut-off provides excellent spray control. Precision-machined components with spring loaded Teflon packings ensure many millions of trouble-free cycles. Compact spray valve with round spray pattern nozzle for controlled precision spraying, bonding, marking or lubricating.
Spray Valves are designed for precise spray applications of low to medium viscosity materials. An external stroke control makes it easy to fine-tune fluid flow. Total control of the spray cycle is provided by adjustable fluid flow and precise control of pre-spray, atomizing air and post-spray with the TS500R controller. Normal maintenance is simple and downtime is virtually eliminated with only one seal to replace.
Part ID: TS5540-014F
Materials: Teflon, Delrin, 303 stainless steel
Size: 107mm L x 28.5mm Diameter
Weight: 0.74lb (336g)
Viscosity Range: 1 - 5,000 CPS
Repeatability: +/-0.56%
Cycle Rate: Up to 600 cycles/ minute
Flow Rate (water): 1680ml/ min (water)
Min Shot Size: 0.14 cc / ml
Max Fluid Pressure: 100 psi (6.9 bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/8" NPT
Material Outlet: Spray Nozzle
Mounting: 1/4"-20UNC-2B
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
The combination of adjustable fluid flow, adjustable nozzle air and post-air cut-off provides excellent spray control. Precision-machined components with spring loaded Teflon packings ensure many millions of trouble-free cycles. Compact spray valve with round spray pattern nozzle for controlled precision spraying, bonding, marking or lubricating.
Spray Valves are designed for precise spray applications of low to medium viscosity materials. An external stroke control makes it easy to fine-tune fluid flow. Total control of the spray cycle is provided by adjustable fluid flow and precise control of pre-spray, atomizing air and post-spray with the TS500R controller. Normal maintenance is simple and downtime is virtually eliminated with only one seal to replace.
Part ID: TS5540-014F
Materials: Teflon, Delrin, 303 stainless steel
Size: 107mm L x 28.5mm Diameter
Weight: 0.74lb (336g)
Viscosity Range: 1 - 5,000 CPS
Repeatability: +/-0.56%
Cycle Rate: Up to 600 cycles/ minute
Flow Rate (water): 1680ml/ min (water)
Min Shot Size: 0.14 cc / ml
Max Fluid Pressure: 100 psi (6.9 bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/8" NPT
Material Outlet: Spray Nozzle
Mounting: 1/4"-20UNC-2B
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Low Volume and Low Pressure
- No overspray, no mist/ bounce
- High transfer efficiency
- Adjustable fluid flow rate
- Adjustable nozzle air
- Teflon® packings
- Consistent area of coverage
- Cycle rate up to 600/minute
- Positive shut off
