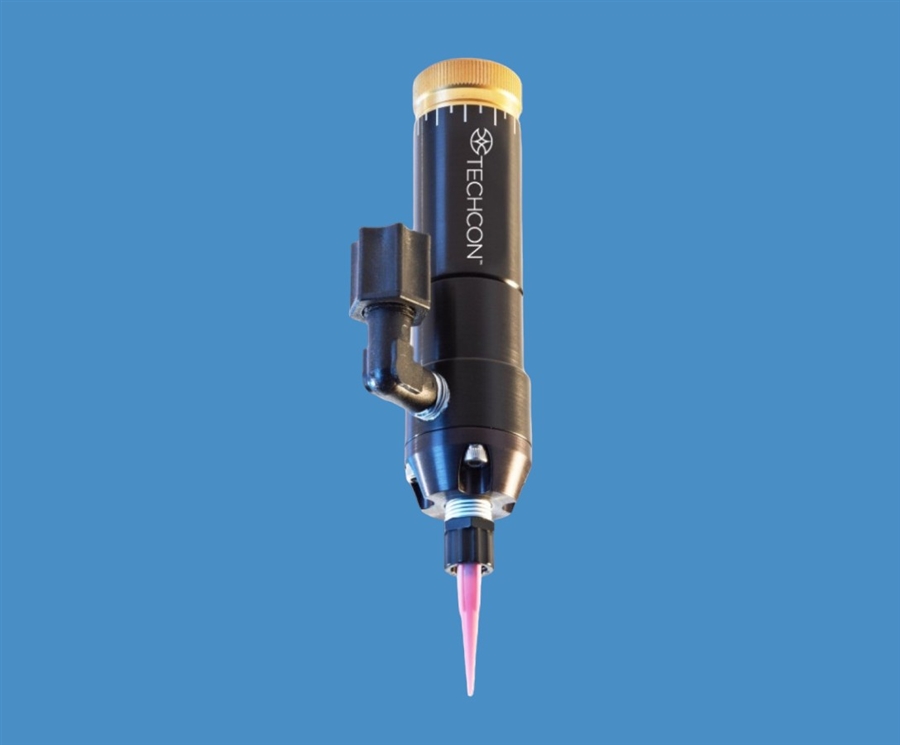

Sealant Grease & Paste Mini Spool Valve TS5322D
Product Code: TS5322D
Price: £1,490.00
Description
Designed to dispense medium to viscous materials fed from syringes, cartridges or pumps. The TS5322 provides repeat deposits of sealants, silicones, RTV, grease and pastes. TS5322 valves are approximately 4.0" (101.6mm) long and 1.38" (35mm) wide. They weigh approx. 0.31 lbs (141g). The minimum operating air pressure required is 70 psi. Flow rates (water) are approx. 2700cc/ml gallons per minute @ 100psi (maximum free flow area is measured without dispense tip adapter, which creates reduced output area).
The minimum shot size for the valve is approximately 0.002 cc/ml and these valves will cycle up to speeds of 700 deposits per minute. The viscosity range of fluid is recommended at between 5000 - 1 Million CPS. The maximum fluid pressure is 500psi. The repeatability is +/- 0.2%. Recommended digital timed controllers for these valves are the TS250, TS350 and TS500R. This is the Delrin version for greater material compatibility. All valves are shipped with a luer lock fluid elbow fitting, airline hose with male quick connect, mounting attachment, tip cap end seal, selection of dispensing tips and user guide.
Valves are supplied with a 1 Year warranty. Do not use this valve for reactive adhesives and fluids such as Cyanoacrylates.
Part ID: TS5322D
Materials: 303 SS, Anod Aluminium, Teflon, Delrin
Size: 101.6mm L x 25mm Diameter
Weight: 141g
Viscosity Range: 5,000 to 1 Million CPS
Repeatability: +/- 0.2%
Cycle Rate: Up to 500 cycles/ minute
Flow Rate (water): 2700ml/ minute @100 psi
Min Shot Size: 0.002 cc or ml
Max Fluid Pressure: 500 psi
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/8" NPT
Material Outlet: 1/8" NPT
Mounting: 1/4" 20UNC-2B
Commodity Code: 84249020
The minimum shot size for the valve is approximately 0.002 cc/ml and these valves will cycle up to speeds of 700 deposits per minute. The viscosity range of fluid is recommended at between 5000 - 1 Million CPS. The maximum fluid pressure is 500psi. The repeatability is +/- 0.2%. Recommended digital timed controllers for these valves are the TS250, TS350 and TS500R. This is the Delrin version for greater material compatibility. All valves are shipped with a luer lock fluid elbow fitting, airline hose with male quick connect, mounting attachment, tip cap end seal, selection of dispensing tips and user guide.
Valves are supplied with a 1 Year warranty. Do not use this valve for reactive adhesives and fluids such as Cyanoacrylates.
Part ID: TS5322D
Materials: 303 SS, Anod Aluminium, Teflon, Delrin
Size: 101.6mm L x 25mm Diameter
Weight: 141g
Viscosity Range: 5,000 to 1 Million CPS
Repeatability: +/- 0.2%
Cycle Rate: Up to 500 cycles/ minute
Flow Rate (water): 2700ml/ minute @100 psi
Min Shot Size: 0.002 cc or ml
Max Fluid Pressure: 500 psi
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/8" NPT
Material Outlet: 1/8" NPT
Mounting: 1/4" 20UNC-2B
Commodity Code: 84249020
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for silicones, sealants, greases, gels
- Snuff-back action prevents drips
- Handles high viscosity materials
- Repeat deposits, lines or potting
- Adjustable stroke control for fine tuning
- Syringe feed, cartridge or pressure pot
- Supplied with hose, input fitting, tip adapter
- Easy bench, machine or robot mount
- Control using TS500R, TS250 or TS350
