CA Adhesive Timed Shot System JGD7000-CA
Product Code: JGD7000-CA
Price: £1,590.00
Description
Cyanoacrylate adhesive dispenser designed to accept a 500 gram bottle (1 lb) of instant adhesive. There is no pouring needed (ie: you drop your bottle of glue right into the dip-tube tank). Very little clean up is involved with this system and you do not smell the strong fumes of the glue as this is a contained system.
The valve is designed to dispense thin, medium (and some flowable gel cyanoacrylates) with precise deposits of glue, with no dripping. The system has many ways to control the deposit: - needle size, tank pressure, - timer length control, - valve fine stroke adjustment. This system comprises of a valve, controller unit and pressure pot for applying CA's direct from standard 500 gram bottles.
Buying a CA adhesive in a 500g sized bottle can be cost effective when compared to small 20g or 50g bottles. When applying adhesives by hand, it is slow and too much is often applied to each part which can create mess, waste and might damage some products. Or too little adhesive can be applied which creates a weak bond and part failure. With our system, the adhesive bottle is placed directly inside the compact tank unit and fed under very low air pressure down flexible feed tubing to the stand mounted diaphragm valve. The controller unit is then set to make micro dots, shots or beads each time the foot pedal is pressed. Its very simple to operate and maintain because all wetted parts are designed for use with CA's.
For CA's, dispensing tips are Teflon lined crimped to prevent rapid clogging of the adhesive. Using Teflon tips allows the operator to dispense CA adhesive without it blocking too quickly in between breaks or them having to replace tips too often. The same applies for automated machine applications such as a production line or cell where dispensing delays could see a need to repace inferior quality tips when dispensing CA's. Using our Teflon lined or full Teflon tips ensures that the application of CA's are problem free. The systems comprises of a pressure pot to accept a 500g or smaller adhesive bottle.

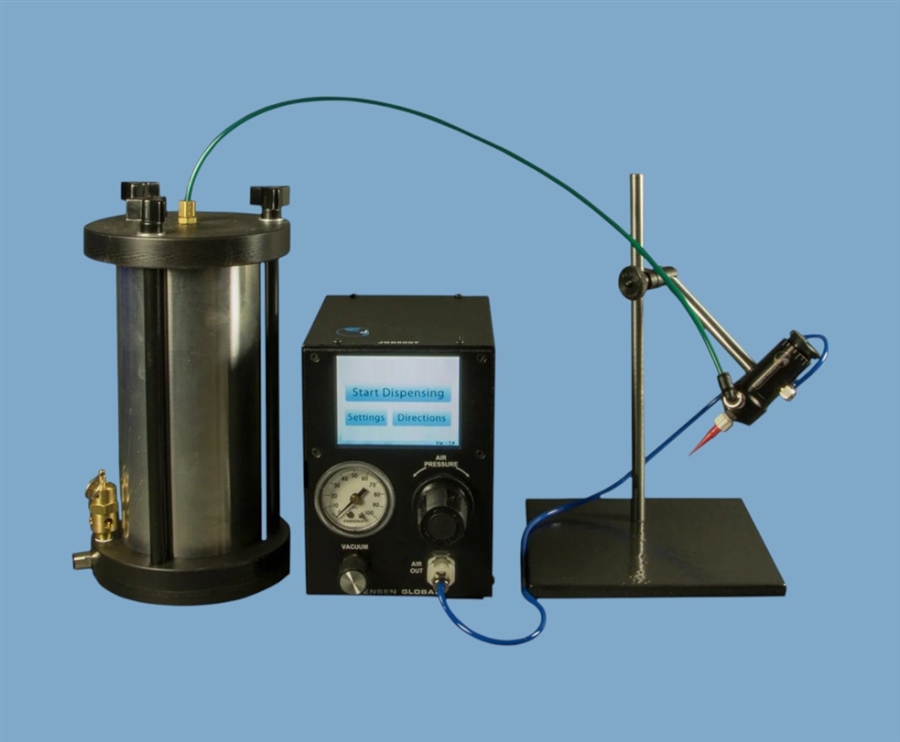

A digital timed controller/ dispenser and a diaphragm valve. And a benchtop stand to fix the valve in place for hands free dispensing. This dispensing system will ship with an extensive starter stock of Teflon tips, caps and fluid lines. The requirements for this system are a compressed air supply of 70-100 psi and a power supply of 110 - 230 V AC.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all
assembly fluids - from watery liquids, solvents, primers and activators
through to thick pastes, sealants, silicones, gels and epoxies.
The valve is designed to dispense thin, medium (and some flowable gel cyanoacrylates) with precise deposits of glue, with no dripping. The system has many ways to control the deposit: - needle size, tank pressure, - timer length control, - valve fine stroke adjustment. This system comprises of a valve, controller unit and pressure pot for applying CA's direct from standard 500 gram bottles.
Buying a CA adhesive in a 500g sized bottle can be cost effective when compared to small 20g or 50g bottles. When applying adhesives by hand, it is slow and too much is often applied to each part which can create mess, waste and might damage some products. Or too little adhesive can be applied which creates a weak bond and part failure. With our system, the adhesive bottle is placed directly inside the compact tank unit and fed under very low air pressure down flexible feed tubing to the stand mounted diaphragm valve. The controller unit is then set to make micro dots, shots or beads each time the foot pedal is pressed. Its very simple to operate and maintain because all wetted parts are designed for use with CA's.
For CA's, dispensing tips are Teflon lined crimped to prevent rapid clogging of the adhesive. Using Teflon tips allows the operator to dispense CA adhesive without it blocking too quickly in between breaks or them having to replace tips too often. The same applies for automated machine applications such as a production line or cell where dispensing delays could see a need to repace inferior quality tips when dispensing CA's. Using our Teflon lined or full Teflon tips ensures that the application of CA's are problem free. The systems comprises of a pressure pot to accept a 500g or smaller adhesive bottle.
A digital timed controller/ dispenser and a diaphragm valve. And a benchtop stand to fix the valve in place for hands free dispensing. This dispensing system will ship with an extensive starter stock of Teflon tips, caps and fluid lines. The requirements for this system are a compressed air supply of 70-100 psi and a power supply of 110 - 230 V AC.
Features
- System for specifically handling CAs
- Tips and tubes will not clog
- Quick attach luer lock fluid lines
- Diaphragm valve designed for CA dispensing
- Controller unit includes timer or continuous mode
- Pressure pot with adjustable regulator and gauge
- Adjustable stand for valve
