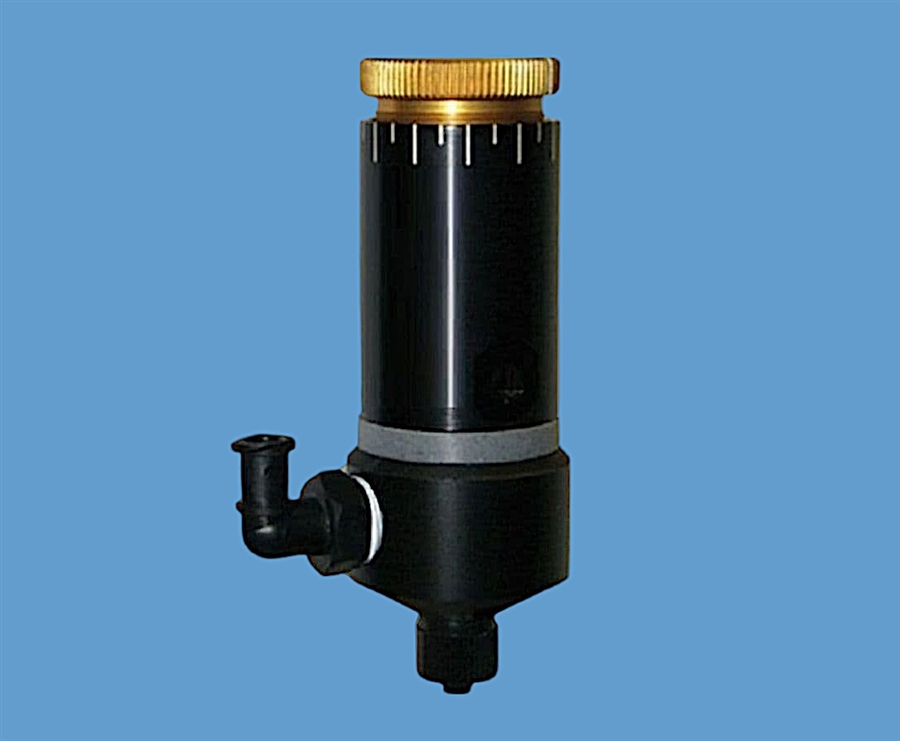

Air Operated Delrin Diaphragm Valve TS5622VD
Product Code: TS5622VD
Price: £813.00
Description
The TS5600 Series dispense valves accurately control the application of most low to medium viscosity fluids without drips. The unique seal-less design incorporates an inert polymer diaphragm that isolates the actuator from the valve. The adjustable open/close stroke 0.13 to 0.64 mm (0.005" to 0.025") allows for a very fast response with positive shutoff.
Wetted components are made of inert plastics. Takes a direct feed from any pressure pot, cartridge or syringe and includes a selection of flexible fluid line tubing and connectors. Valve open time can be as short as 15 milliseconds.
This Delrin valve is most suited to UV cure, solvents, water, inks, primers and activators. Please select the UHMW version (TS5622VU) for Cyanoacrylates. Use with the pneumatic dispenser/ controller.
Part ID: TS5622VD
Wetted Materials: Delrin, Teflon
Size: 76mm L x 27mm Dia.
Weight: 118g (0.26lb)
Viscosity Range: 1 - 50,000 CPS
Repeatability: +/- 3%
Cycle Rate: Up to 500 cycles/ minute
Flow Rate (water): 7250ml/minute @ 100 psi
Min Shot Size: 0.0075 cc/ ml
Max Fluid Pressure: 70 psi ( 5 Bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/8" NPT
Material Outlet: 1/4-28 UNF
Mounting: 10-32 UNF
Warranty: 1 Year
Commodity Code: 90289090
Model TS5622VD with Delrin polymer wetted parts is used for dispensing UV cure, anaerobics and fluxes. Simple to use with any pneumatic dispenser/ controller. Fluid housing is in FDA-compliant Delrin for most dispensing applications. A UHMW version is available for chemical compatibility and a Teflon version for Cyanoacrylates. A stainless steel version with optimized internal fluid route is especially dedicated to dispense UV-cure adhesives, resins and lacquers used in the manufacture of DVDs and CDs. A hand-held actuated valve is also available.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for UV cure, anaerobics and many other fluids
- High precision solution supplied complete
- Repeat dots, lines or potting of most liquids
- Adjustable stroke control for fine tuning of flow
- Syringe feed, cartridge feed or pressure pot
- Supplied with fluid lines and tip kit
- Easy bench mount, machine mount or robot mount
- Simple to control using TS500R, TS250 or TS350
- 1 Year Warranty
