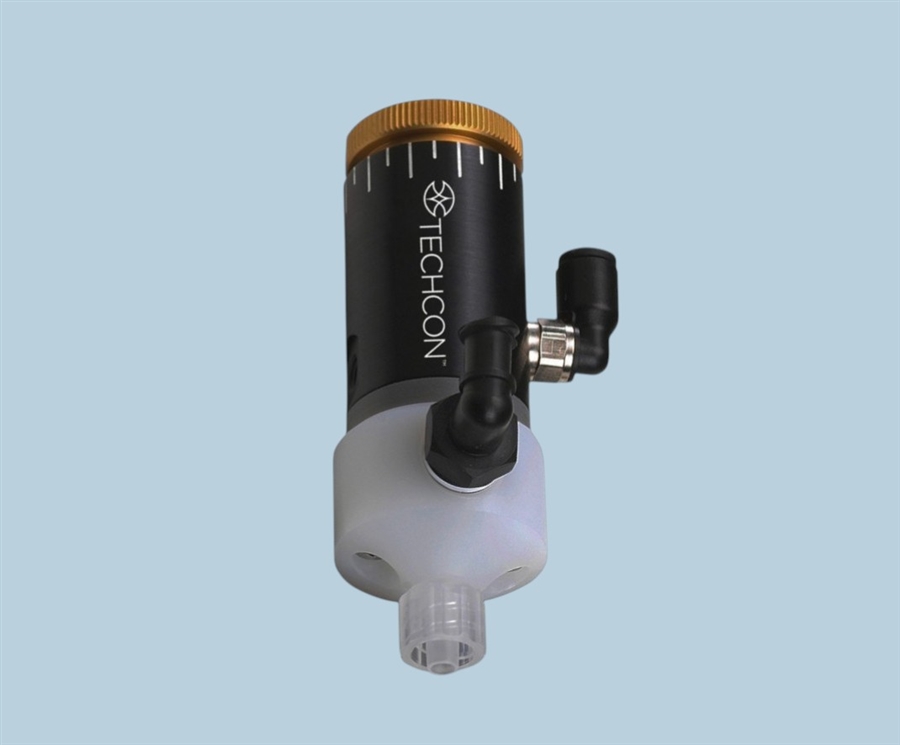

Air Operated UHMW Diaphragm Valve TS5622VU
Product Code: TS5622VU
Price: £840.00
Description
Diaphragm Valves are designed to dispense low to medium-viscosity materials with precision over a wide range of shot and bead sizes, down to a fraction of a microliter.
An internal spring return makes the valves fully adaptable for use with Techcon time/pressure controllers. A short opening stroke provides an extremely fast, positive shut-off. An external stroke control adjustment makes it easy for the operator to fine-tune shot sizes. The compact design allows for mounting flexibility and easy integration into automated applications. The valves are low maintenance, easy to use, and easy to maintain with user-replaceable spare parts.The TS5600 Series dispense valves accurately control the application of most low to medium viscosity fluids without drips. The unique seal-less design incorporates an inert polymer diaphragm that isolates the actuator from the valve. The adjustable open/close stroke 0.13 to 0.64 mm (0.005" to 0.025") allows for a very fast response with positive shutoff.
Wetted components are made of inert plastics. Takes a direct feed from any pressure pot, cartridge or syringe and includes a selection of flexible fluid line tubing and connectors. Valve open time can be as short as 15 milliseconds. Model TS5622VU with UHMW* polymer wetted parts is used for dispensing solvents, cyanoacrylates, anaerobics and fluxes. Simple to use with pneumatic dispensers/ controllers. *Ultra High Molecular Weight polyethylene.
Part ID: TS5622VU
Wetted Materials: UHMW, Teflon
Size: 76mm L x 27mm Dia.
Weight: 118g (0.26lb)
Viscosity Range: 1 - 50,000 CPS
Repeatability: +/- 0.30%
Cycle Rate: Up to 500 cycles/ minute
Flow Rate (water): 7250ml/minute @ 100 psi
Min Shot Size: 0.0075 cc/ ml
Max Fluid Pressure: 70 psi ( 5 Bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/8" NPT
Material Outlet: 1/4-28 UNF
Mounting: 10-32 UNF
Warranty: 1 Year
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for cyanoacrylates
- High precision solution supplied complete
- Repeat dots, lines or potting of most liquids
- Adjustable stroke control for fine tuning of flow
- Syringe feed, cartridge feed or pressure pot
- Supplied with fluid lines and tip kit
- Easy bench mount, machine mount or robot mount
- Simple to control using TS500R, TS250 or TS350
- 1 Year Warranty
