Description

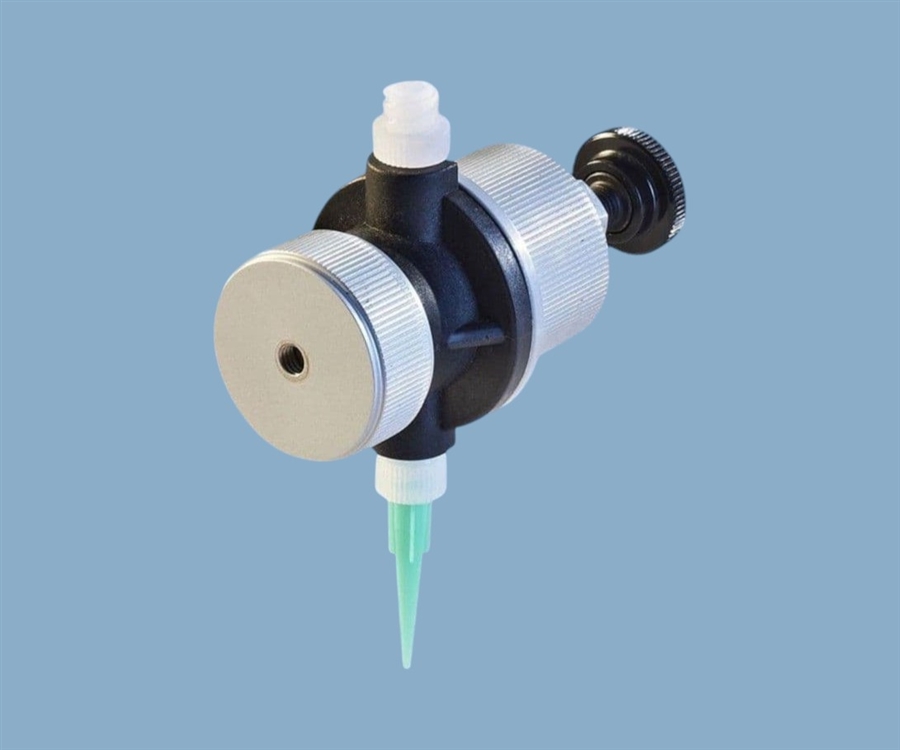

The pinch tube valve is a compact and cost effective device for dispensing very thin liquids, semi-viscous materials, cyanoacrylates, anaerobics, solvents, UV cure adhesives and two-component fluids. For repeat dots, beads or potting of liquids fed from a syringe, cartridge or pressure pot. The only part of the valve that makes contact with the liquid is the low cost replaceable pinch tube assembly. This makes the TS1212 valve ideal for aggressive or curable liquids with no risk of the material setting and damaging expensive parts.

Compact and easy to set up, this valve is operated by any of our valve controllers. The controller provides a timed pulse of air pressure to open the TS1212 pinch tube, allowing the adhesive or liquid to flow. A spring loaded shut-off provides the ability to make micro dots if required with no drips between shots. The shot size is determined by the time setting on the controller, the fluid pressure, the amount of opening set on the adjustable stroke control and the size of needle tip used.

For complete systems, we offer a range of options including TS1212 valve, pressure pot and controller. The connecting link between reservoir and the TS1212 is a fluid line that offers a safe luer lock connection and is suitable for use with most liquids and adhesives. Use Teflon lined or Teflon tips for cyanoacrylates, General Purpose tips for other fluids and Tapered tips for viscous liquids. Please note the stand is ordered separately and is not included.

Size: 83mm L x 40mm Diameter
Weight: 82g
Wetted Parts: Polyethylene
Viscosity Range: 1 - 45,000 CPS
Min Shot Size: 0.007 cc/ ml
Repeatability: +/-0.56%
Flow Rate: Up to 2 Litres/minute @ 60 psi (water)
Max Fluid Pressure: 60 psi ( 4 Bar)
Material Inlet: Female Luer Lock
Material Outlet: Male Luer Lock
Valve Mounting: 1/4" 20UNC-2B
On/Off Pressure: 50 psi (3.4 Bar) Minimum
Warranty: 1 Year

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, Adhesive Dispensing Ltd does not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.

Features

Ideal for cyanoacrylates, UV cure and anaerobics
Zero cleanup with replaceable pinch tubes
Low cost dispensing solution supplied complete
Controlled deposits, lines or potting of most liquids
Syringe feed, cartridge feed or pressure pot
Supplied with pinch tubes, fluid lines and tip kit
Easy bench mount, machine mount or robot mount
1 Year Warranty
