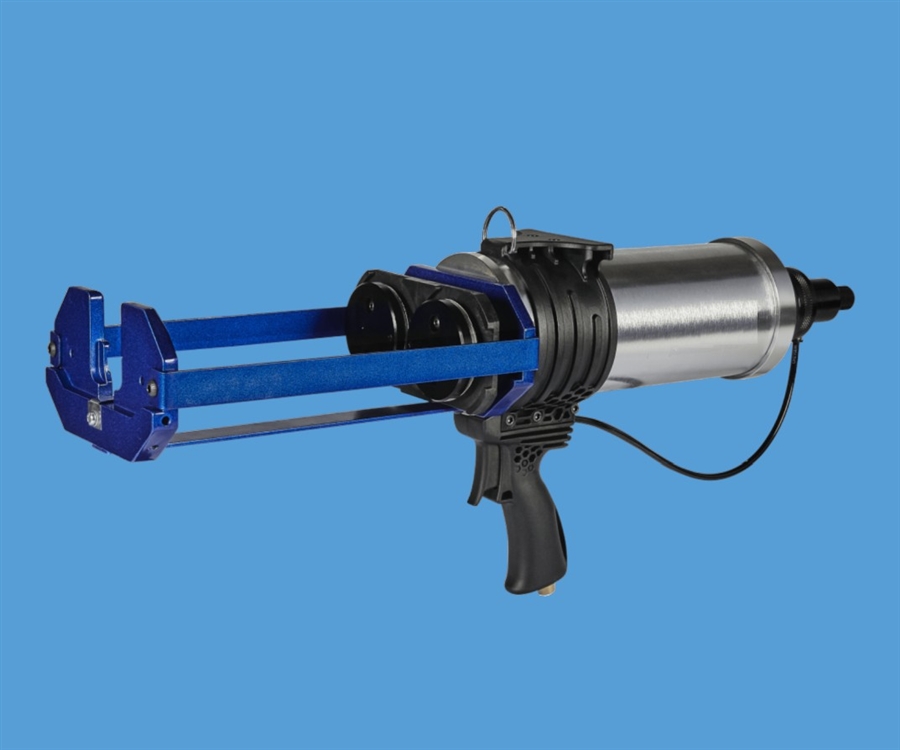

Handheld pneumatic dual cartridge gun 600ml 1:1 and 2:1 ratios

Description

For epoxies, resins, polyurethanes, silicones, potting compounds and other adhesives that are supplied in 600ml dual side-by-side 1:1 and 2:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of these dual dispenser guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.

This is a lightweight hand trigger operated cartridge gun supplied with parts to handle a variety of cartridge ratio's. The CG Series guns are covered by a 1 year warranty and feature a wear compensating device. An adjustable regulator is built-in allowing the user to set optimum flow rate to suit the material. A hook ring allows the use of a counter-balance. A simple click on the cylinder reverses the air flow to pull the plunger rods back when the cartridge is empty. This dispenser gun is suited for controlled deposits of most low to medium viscosity materials and is designed for long periods of use.

Part ID: CG600-1
Materials: Nylon, Polypro, Steel, Zinc
Colour: Black/ Green
Size: 600ml dual 1:1/ 2:1 ratios
Weight: 1.9kg
Air Input Connection: 1/4 Inch BSP Male Thread
Thrust: Nominal Thrust 490 lbs. @ 100psi
Maximum Input Air Pressure: 100 PSI
Warranty: 1 Year
Commodity Code: 90289090
Approvals: CE

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Nominal Thrust 490 lbs. @ 100psi
2.5" cylinder
Easily Converts in Just Seconds with Snap In / Snap Out Push Disks
Patented Cartridge Stabilizing Plate Securely Holds All Cartridges
Adjustable Air Regulator
Air Dump Valve Stops Flow Instantly
Reverse Air
Quick Disconnect Nipple
