400ml Manual Dual Gun Multi Ratio BG400-1
Product Code: BG400-1
Price: £85.00
Description

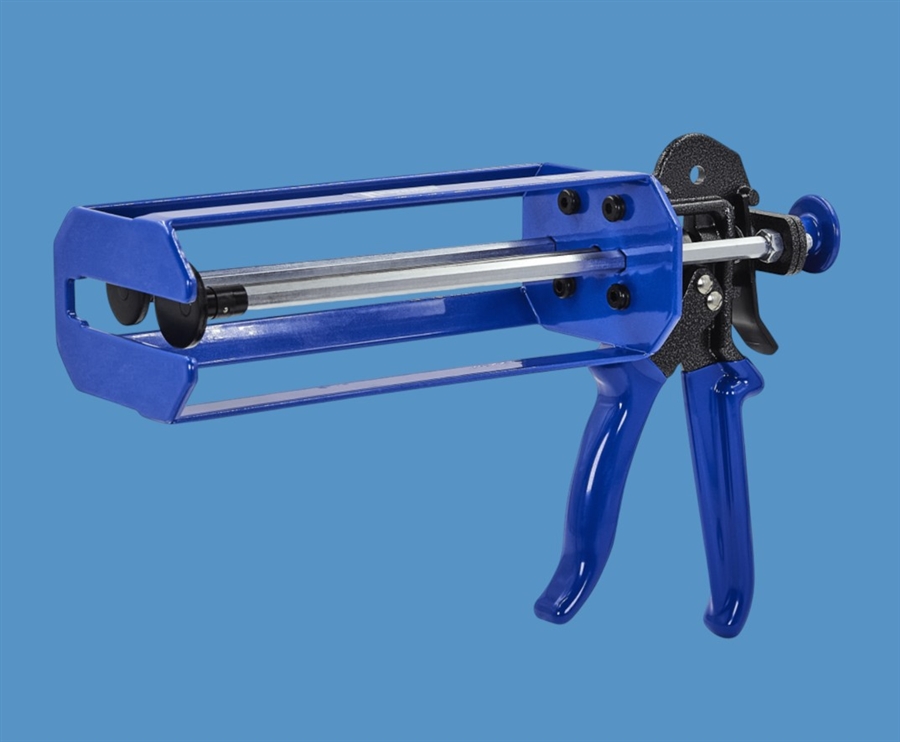

For epoxies, adhesives and many other materials that are supplied in 400ml type dual side-by-side 1:1, 2:1, 4:1 and 10:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of these dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive. This is a lightweight hand trigger operated cartridge gun supplied with parts to handle a variety of cartridge ratio's.
Use with Mixpac, TAH type and other dual side-by-side cartridges. Side loading system allows more versatility with cartridge insertion and with cartridge size. The BG Series guns are covered by a 1 year warranty and feature a wear compensating device.
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Use with Mixpac, TAH type and other dual side-by-side cartridges. Side loading system allows more versatility with cartridge insertion and with cartridge size. The BG Series guns are covered by a 1 year warranty and feature a wear compensating device.
Part ID: BG400-1
Handle Material: Epoxy Coated Aluminum
Frame Material: Epoxy Coated Steel
Gun Colour: Blue
Gun Length: 342.9mm
Gun Width: 82.55mm
Gun Barrel Length: 222mm
Gun Weight: 1.90kg
For Cartridge Types: 400ml/200ml 1:1/ 2:1/ 4:1 & 10:1 ratio
Maximum Thrust: 4.6kN
Mechanical Advantage Ratio: 26:1
Viscosity: High
Warranty: 1 Year
Tool Component Approvals: REACH
Commodity Code: 90289090
Handle Material: Epoxy Coated Aluminum
Frame Material: Epoxy Coated Steel
Gun Colour: Blue
Gun Length: 342.9mm
Gun Width: 82.55mm
Gun Barrel Length: 222mm
Gun Weight: 1.90kg
For Cartridge Types: 400ml/200ml 1:1/ 2:1/ 4:1 & 10:1 ratio
Maximum Thrust: 4.6kN
Mechanical Advantage Ratio: 26:1
Viscosity: High
Warranty: 1 Year
Tool Component Approvals: REACH
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- 26:1 Thrust Ratio
- For Use with 200 ml and 400 ml Cartridges
- Easily Converts in Just Seconds to Mix Ratios of 1:1, 2:1, 4:1, and 10:1
- Snap In/Snap Out Push Disks
- Precision Sintered Friction Plate
- Easy Release Star-Burst Reverse Gripping Plate
- Hammered Finish Zinc Alloy Handle with Comfort Grip
- Slide in/Side Load
