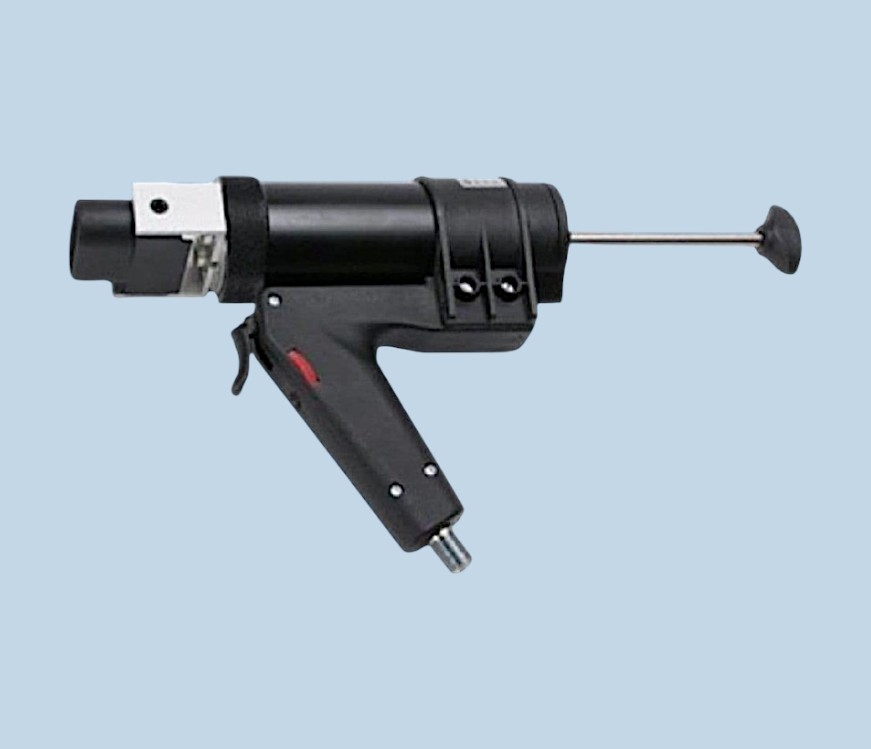

50ml 75ml Pneumatic Dispenser EDS408M
Product Code: EDS408M
Price: £230.00
Description
The EDS408M is a pneumatic dispenser designed for use with two-component adhesives that are supplied in 50ml and 75ml, side-by-side dual cartridges and that push the adhesive into a static mixing nozzle. The lightweight portability and durable construction of this pneumatic dispenser gun makes it well suited for many assembly operations in various markets such as aerospace, electronics, construction, engineering and automotive. Typical materials dispensed are epoxy resins, polyurethanes, potting compounds, silicones and doming resins.
This premium dispenser features an adjustable flow control so the user can achieve the optimum flow rate for the material viscosity and the deposit size required. Simple load and unload of the cartridges using the front cradle that tilts to allow easy access. Featuring high strength metal rods that push down into the cartridge pistons to provide an even material flow. This ensure a high thrust force when required and eliminates hand fatigue associated with manual dispensing medium viscosity materials.
This dispenser will accommodate all ratio 50ml dual cartridges including 1:1, 2:1, 4:1 and 10:1. And it works with 75ml size dual cartridges in the 1:1 ratio. The EDS408M is ideal for use with prefilled adhesive cartridges. It is lightweight and very easy to use. Supplied with a user guide and warranty card.
Setting pressure using the rotary wheel for faster flow rates or when dispensing higher viscosity materials.
Suitable for dispensing two-component materials without hand strain
Fast air exhaust after the deposit is made reduces material ooze or drool
Very easy loading flange for cartridge insertion and removal
Suitable for dispensing two-component materials without hand strain
Fast air exhaust after the deposit is made reduces material ooze or drool
Very easy loading flange for cartridge insertion and removal
Reliable Supply & Fast Global Delivery
Packaged boxed with user guide and warranty card
Batch-coded for full traceability
Available for fast delivery worldwide
Versatile Cartridge Compatibility: Accommodates 50mL (1.8oz) and 75mL (2.5oz) cartridges with mix ratios of 1:1, 2:1, 4:1, and 10:1, making it suitable for a wide variety of adhesive formulations. This flexibility allows you to tackle diverse bonding projects with a single, reliable tool.
Effortless Operation: The pneumatic operation minimizes user fatigue, especially during high-volume applications. Quick cartridge exchange and one-hand pressure adjustment further enhance user convenience and productivity.
Clean and Precise Dispensing: The integrated anti-drip function ensures clean application and prevents material waste, saving you money and reducing clean-up time. Achieve accurate and consistent beads for professional-quality results.
Durable Construction: Built with a reinforced nylon handle and cartridge holder, the EDS408M is designed for long-lasting performance in demanding environments. Its lightweight design (0.73kg) minimizes strain during extended use. Made in England.
Reliable Performance: Backed by a 1 year warranty, you can trust the Cox EDS408M to deliver consistent and reliable performance day after day.
Specifications:
Part Code: EDS408M
MPN: TS408 MY-8
Lightweight: 0.73kg / 1.6lbs
Dispenser Length: 232mm / 9.1inch
Maximum Thrust: 1.3kN
Maximum Pneumatic Pressure: 8bar / 116psi
Air Consumption: 40 litres/minute
Handle Material: Reinforced Nylon
Cartridge Holder Material: Reinforced Nylon
Tool Component Approvals: CE
Cartridge Capacity: 50mL, 75mL
Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
Viscosity: Up to High
Standard Colour: Black
Warranty: 1 Year
Commodity Code: 90289090
Origin: UK
MPN: TS408 MY-8
Lightweight: 0.73kg / 1.6lbs
Dispenser Length: 232mm / 9.1inch
Maximum Thrust: 1.3kN
Maximum Pneumatic Pressure: 8bar / 116psi
Air Consumption: 40 litres/minute
Handle Material: Reinforced Nylon
Cartridge Holder Material: Reinforced Nylon
Tool Component Approvals: CE
Cartridge Capacity: 50mL, 75mL
Cartridge Ratio: 1:1, 2:1, 4:1, 10:1
Viscosity: Up to High
Standard Colour: Black
Warranty: 1 Year
Commodity Code: 90289090
Origin: UK
Suitable for dispensing:
Epoxy Resin
Polyurethanes
Potting Compounds
Silicones
Doming Resins
Epoxy Resin
Polyurethanes
Potting Compounds
Silicones
Doming Resins
Bonding composites
Structural adhesive application
General industrial assembly
Automotive repair
Aerospace manufacturing
Structural adhesive application
General industrial assembly
Automotive repair
Aerospace manufacturing
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Fits all 50ml multi size cartridges
- Easy cartridge load and unload
- Controlled deposit or beads
- Lightweight robust construction
- Fast air exhaust reduces drips
- Built in adjustable air regulator
