18G 1" Long Tip Crimped TS18-1 pk/50
Product Code: TS18-1
Price: £18.50
Description

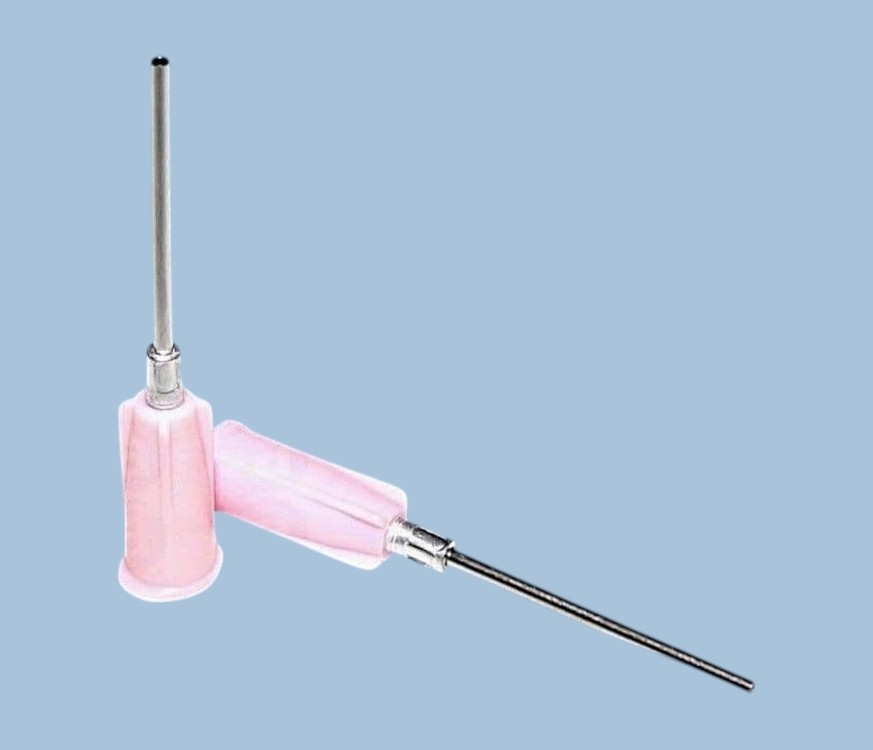

The TS Series dispensing tips offer a variety of dispensing performance and flexibility options. Stainless steel tubing is cut to precise lengths and ground to be burr-free. Cut tubing is crimped into aluminium locking insert, then moulded into polypropylene hubs. Moulded hub colours correspond to gauge size. All TS Series tips secure to syringe barrels and correspond to the luer lock specification.
Tips are colour coded for gauge size. The tip uses a slightly tapered internal design where the shaft joins the hub to ease fluid flow and reduce restriction. This allows for a lower pressure to be used for dispensing liquids and pastes. Pricing is for a box of 50.
Part ID: TS18-1
Materials: Polypropylene, Stainless Steel
Hub Colour: Pink
Inner Diameter: 0.033" - 0.84 mm
Outer Diameter: 0.050" - 1.27 mm
Tube Length: 1.00" - 25.4 mm
Maximum Pressure: 100 PSI
Tip Details: Industrial Grade, Silicone Free, Chloride Free
Commodity Code: 90289090
Pack Size: 50 Pieces
Tips are colour coded for gauge size. The tip uses a slightly tapered internal design where the shaft joins the hub to ease fluid flow and reduce restriction. This allows for a lower pressure to be used for dispensing liquids and pastes. Pricing is for a box of 50.
Part ID: TS18-1
Materials: Polypropylene, Stainless Steel
Hub Colour: Pink
Inner Diameter: 0.033" - 0.84 mm
Outer Diameter: 0.050" - 1.27 mm
Tube Length: 1.00" - 25.4 mm
Maximum Pressure: 100 PSI
Tip Details: Industrial Grade, Silicone Free, Chloride Free
Commodity Code: 90289090
Pack Size: 50 Pieces
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Precision burr free tubing
- 1.0" length
- Silicone free Safe for use up to 100 psi
- Luer lock colour coded hubs
- Crimped shaft to hub
- Packs of 50 or bulk on request
- Compatible with all fluids
