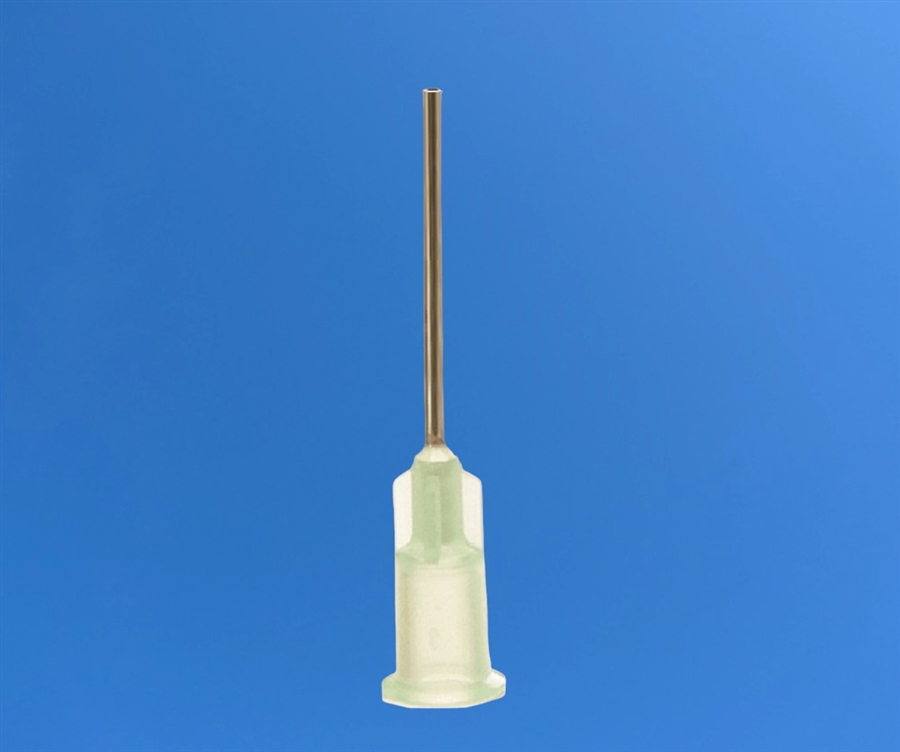

SE418100PK 18G Green 1" Long Luer Lock Precision Tip Adhesive Dispensing Techcon

Description

This is our 18 gauge green precision dispensing tip with a 25.4mm long stainless steel tube. The hub is made from polypropylene so it is well suited to dispensing many low to medium viscosity fluids, glues, adhesives, inks, liquids and gels. These are general purpose tips. This tip has a luer lock attachment so will twist onto all luer lock syringe barrels or push onto luer slip syringes. It can be used with dispense valves and fluid fittings. The tubing inner diameter size is 0.84mm and the outer tube diameter is 1.27mm. It can handle fluid pressures of up to 100psi safely.

Our tips are certified silicone-free so will not contaminate sensitive and specialist adhesives that are used with them. We ship in boxes of 50 or bulk value packs of 1000. All packaging is sealed with labels including part code and batch code. All tips are colour coded for gauge size. Tubing is burr-free and electro polished for unobstructed and consistent material flow. The tip has a slightly tapered internal hub design to improve fluid flow and reduce restriction. This allows for lower pressures to be used when compared to other tips.

If you are dispensing materials such as solder pastes, RTV silicones, high viscosity resins and potting compounds, we recommend using our smooth flow tapered tips instead. If its a Cyanoacrylate superglue being applied, used our Teflon lined tips or Polypro. For spreading greases or primers, use our brush tips. For aggressive solvent based glues or liquids, use our aluminium hub tips. UV cure adhesives, consider our crimped hub tips. We hold these tips in stock. All orders placed before 2pm will be sent out same day.

Material: Polypropylene/ Stainless Steel
Hub Colour: Green
ID: 0.033" - 0.84 mm
OD: 0.050" - 1.27 mm
Length: 1.0" - 25.4 mm
Details: Industrial Grade, Silicone Free
Commodity Code: 90289090
Pack Size: 50
Lead Time: Ex Stock

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Precision burr free tubing 1.0" length Silicone free safe Safe for use up to 100 psi
Double helix luer lock colour coded hubs
UV filter plastic hubs
For all fluids, adhesives and solvents

18 Gauge 1.0" Long Tip Green SE418100PK pk/50
