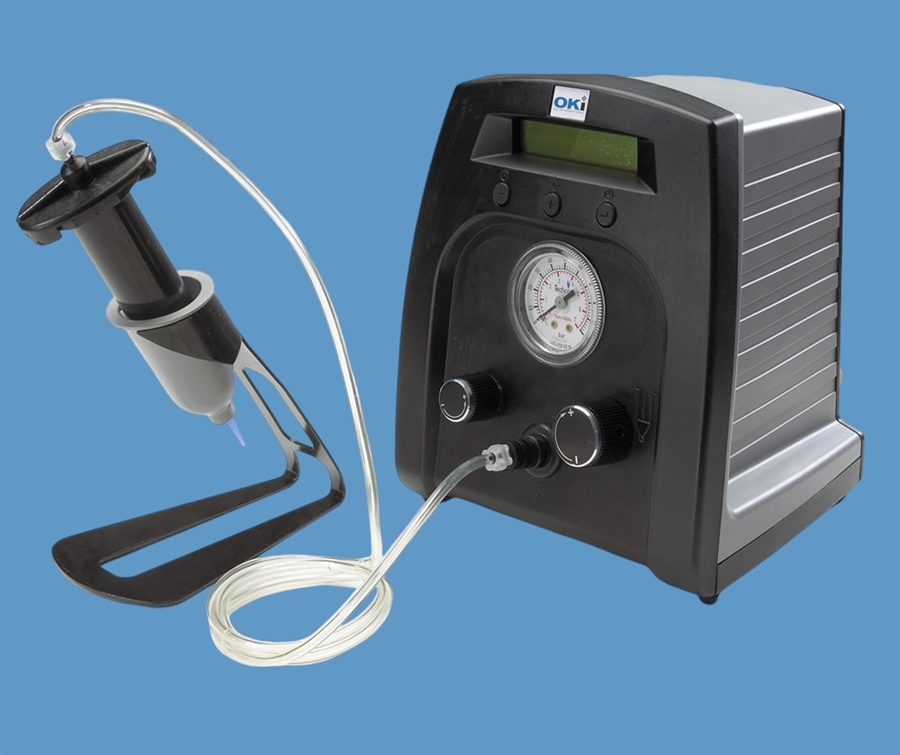

Digital Timed Dispenser 0-100 psi Model TS250
Product Code: TS250
Price: £405.00
Description
Liquid Dispenser with Digital Timer, Vacuum Suck-back and LCD Display
The TS250 system will
dispense virtually any assembly fluid and adhesive or liquid paste, from
thin, watery liquids and solvents to thick gels, silicones and brazing
pastes. All are applied quickly, accurately to reduce waste,
mess and hand fatigue.
This is a system available with 0-100 psi adjustable air regulator for most fluids and pastes or use the 0-15 psi version for watery liquids, watery, cyanoacrylates and solvents. You hold the syringe like a pen, adjust the air pressure to suit the liquid being dispensed then press the foot pedal to apply. When the pedal is released, the deposit instantly stops without drips or oozing. It is safe and simple to use and reduces time spent manually applying liquids. The dispenser is supplied with a user guide .
An adjustable vacuum provides suck-back to the tip to prevent watery liquids from dripping. We recommend the use of an inline filter on the air adapter to the syringe when dispensing low viscosity fluids. The LCD display shows the timer which can be adjusted from 0.02 to 60 seconds for repeat deposits, down to micro-dots. A shot counter shows the number of deposits made dur ing a shift.
This compact dispenser sits on the bench and requires an air input from any compressor or factory mains supply. It comes with airline hose and fittings kit to make connection easy. It will work with any power supply and is supplied with plugs for use in most countries. Includes a syringe stand, syringe and piston kit and needle tip kit selection. Ready to use out of the box.
Timer: 0.02 to 60 seconds
Output Pressure: Up to 100 psi
Input Pressure: 70-100 psi
Size: 152 x 165 x 178mm
Weight: 1.2kg (2.6lb)
Input Voltage: 100-240 V AC
Warranty: 1 Year
Cycle Rate: Up to 600 cycles/minute
Timing Tolerances: +/- 0.001%
Meets or Exceeds: CE, TUV-GS, NRTL
Commodity Code: 84249020
TS250 Datasheet
TS250 Training Guide
TS250 I/O Connection
Full Catalogue
|
|
|
|
Dotting |
|
Beading |
|
Potting |
|
Bonding |
|
Sealing |
|
Lubricating |
Features
- Small footprint takes up less space
- Integrated air pressure regulator
- Powerful vacuum suck back stops drips
- Timer for repeat deposits or beads
- Shot counter display up to 65,535 resettable
- Footswitch and I/O connector
- LCD display for accurate readings
