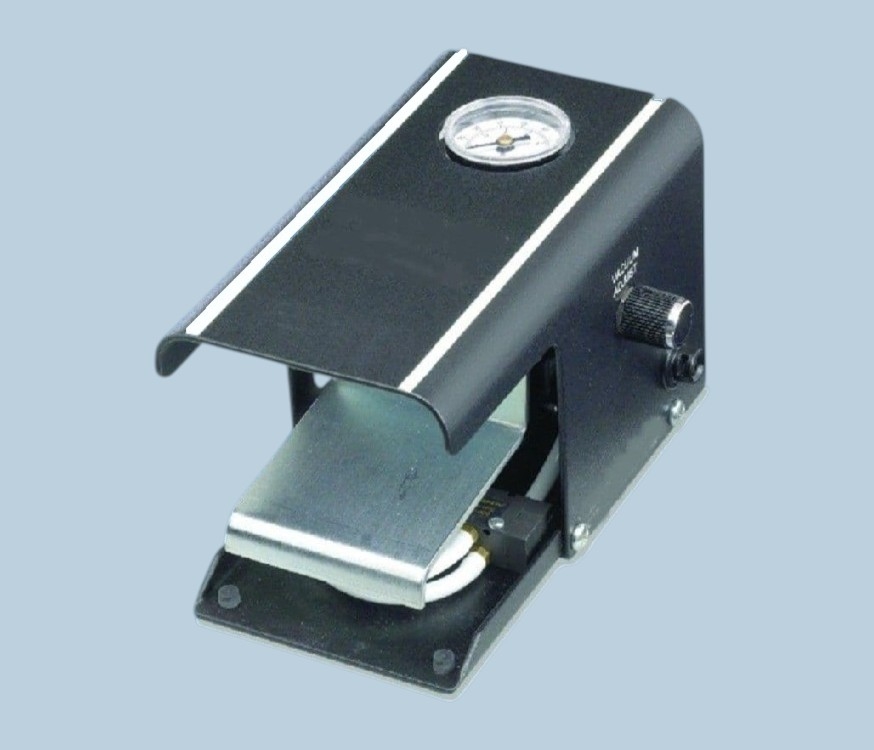

Pneumatic Dispenser Non Timed with Vac TS924V
Product Code: TS924V
Price: £928.00
Description
Floor mounted fully pneumatic adhesive and paste syringe dispenser. With an adjustable 0-100 psi regulator. Powerful vacuum suck-back (adjustable) to prevent drips. Three way air valve for quick shut-off prevents fluid oozing when pedal released. Operator controls deposit output. Press the pedal for flow, lift off to stop.
Suited to controlled dispensing of most medium to high viscosity pastes and fluids, sealants, RTV, grease, gels, epoxies, mastics, sealants and potting compounds. Supplied with a syringe adapter assembly with 6ft long air hose, barrels, pistons and needle tips. Please select the syringe size to ship with the dispenser. As this systems is fully pneumatic, it is suitable for use in hazardous and explosive environments. Supplied with airline hose. Also available without vacuum suck-back (Model TS924) which is for pastes only.
Part Code: TS924V
Timer: None
Output Pressure: Up to 100 psi
Input Pressure: Up to 100 psi
Size: 200 x 127 x 127 mm
Weight: 1.82kg (4lb)
Input Voltage: None (Pneumatic only)
Warranty: 1 Year
Cycle Rate: None (Manual only)
Timing Tolerances: n/a Meets or Exceeds: CE
Manufacturer: Techcon
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Under bench takes up less space
- Integrated air pressure regulator
- Powerful vacuum stops drips
- Non electric
- Fast air exhaust
- Includes barrels and air adapter
- Heavy duty design
