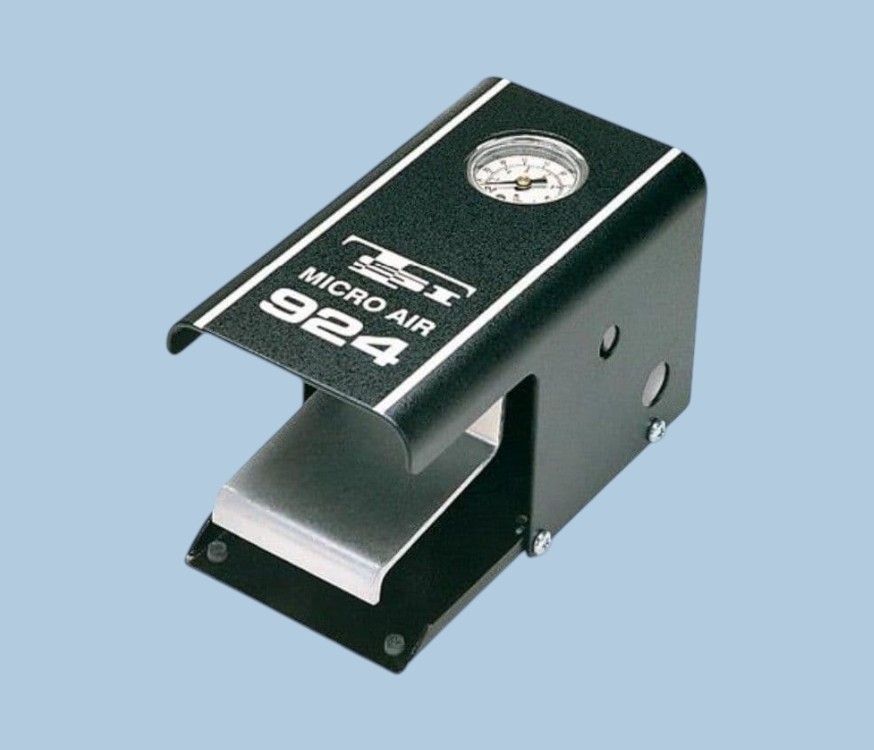

Pneumatic Dispenser Non Timed TS924
Product Code: TS924
Price: £582.00
Description
Non-Timed Pneumatic Dispenser 0-100 psi Regulator & Gauge
Floor mounted pneumatic adhesive and paste syringe dispenser. With an adjustable 0-100 psi regulator. Three way air valve for quick shut-off prevents fluid oozing when pedal released. Operator controls deposit output. Press the pedal for flow, lift off to stop.
Suited to controlled dispensing of most medium to high viscosity pastes and fluids, sealants, RTV, grease, gels, epoxies, mastics, sealants and potting compounds. Supplied with a syringe adapter assembly with 6ft long air hose, barrels, pistons and needle tips. Please select the syringe size to ship with the dispenser.
As this systems is fully pneumatic, it is suitable
for use in hazardous and explosive environments. Supplied with airline hose.
Product datasheet available here. Also available is the TS924 with vacuum suck-back
feature (Model
TS924V)
which helps reduce the effect of drips with lower viscosity liquids.
Timer: None
Input Pressure: Up to 100 psi
Size: 200 x 127 x 127 mm
Weight: 1.82kg (4lb)
Input Voltage: None (Pneumatic only)
Warranty: 1 Year
Cycle Rate: None (Manual only)
Timing Tolerances: n/a Meets or Exceeds: CE
Commodity Code: 84249020
Output Pressure: Up to 100 psi
Features
- Under bench takes up less space
- Integrated air pressure regulator
- Powerful vacuum stops drips
- Non electric
- Fast air exhaust
- Includes barrels and air adapter
- Heavy duty design
