TS580R Digital Smart PC Pump Valve Controller from Adhesive Dispensing

Description

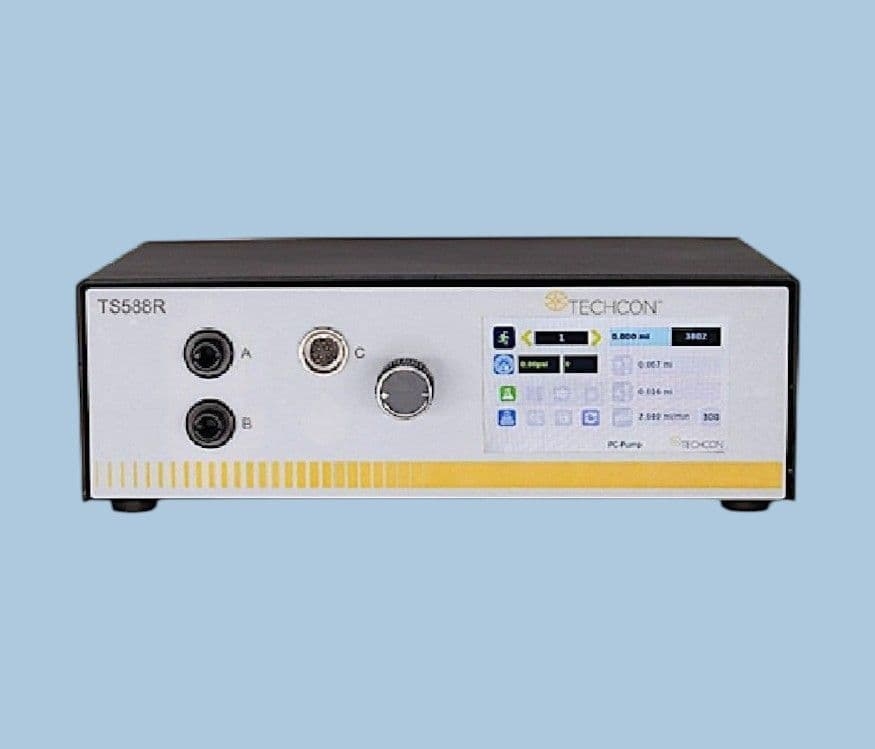

The TS588R is a Smart PC Pump controller capable of controlling the TS8100 series PC Pump. With a universal power supply, it is a fully plug and play system and can be used immediately, anywhere in the world.

The TS588R Smart PC Pump controller features an intuitive touch screen interface for easy setup and operation. Dispensing parameters can be precisely configured directly on the touch screen or remotely through the networking options.

First in its class, the TS588R is equipped with Ethernet and WiFi interfaces that allow users to configure the exact parameters and monitor and control the process from anywhere in the world. This feature complies with Smart Factory requirements of Industry 4.0.

Additional advance features include digital timer to provide accurate and repeatable dispense time, and digital pressure regulator with dual-unit display to allow precise pressure control.

The friendly user interface provides an option to program up to 50 varied, sequenced or individual shots. These systems have a user programmable purge, timed dispense cycle settings and a teach mode for determining the dispensing time.

Integration into semi-automatic and automatic machinery is made easy with the I/O interface connector that can be used to initiate and stop the dispense cycle with feedback to the host machine for the next cycle. A low-pressure warning feature is also included to help maintain uninterrupted dispensing.

The controller is shipped with the following items:
Universal power supply
Foot switch
Air Hose
Air Filter

Accessories
Fluid reservoirs: The controller can be used in combination with the TS1254 or TS1258 Pressure Tank
Dispensing Tips: Suitable for use with all tip series.

Part Number: TS588R
Size (Imperial): 11.4" W x 8.3'' L x 3.9'' H
Size (Metric): 290mm x 211mm x 99mm
Weight: 6.8 lb (3100g)
Pressure Range: 0 to 100psi (0-6.9 bar)
Display: Touch Screen
Timing Range: 0.008 - 99.9 seconds
Timing Tolerance: +/- 0.001%
Input Voltage: 100 - 240 VAC
Cycle Rate: 900/min.
Cycle Modes: Timed, Interrupt, Teach, Purge
Connectivity: Ethernet, WIFI
Certification: CE, TUV-GS
Commodity Code: 90289090

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Key Features and Benefits
Touch Screen interface for easy setup and operation
Industry 4.0 for Smart Factory Integration
Universal power supply for worldwide use
Digital pressure regulator for precise control
Control TS8100 Series PC Pump for:

Under filling PCBA components
Encapsulation and Potting applications
Applying lubrication on automotive parts
Dispensing Pastes and Fluxes
