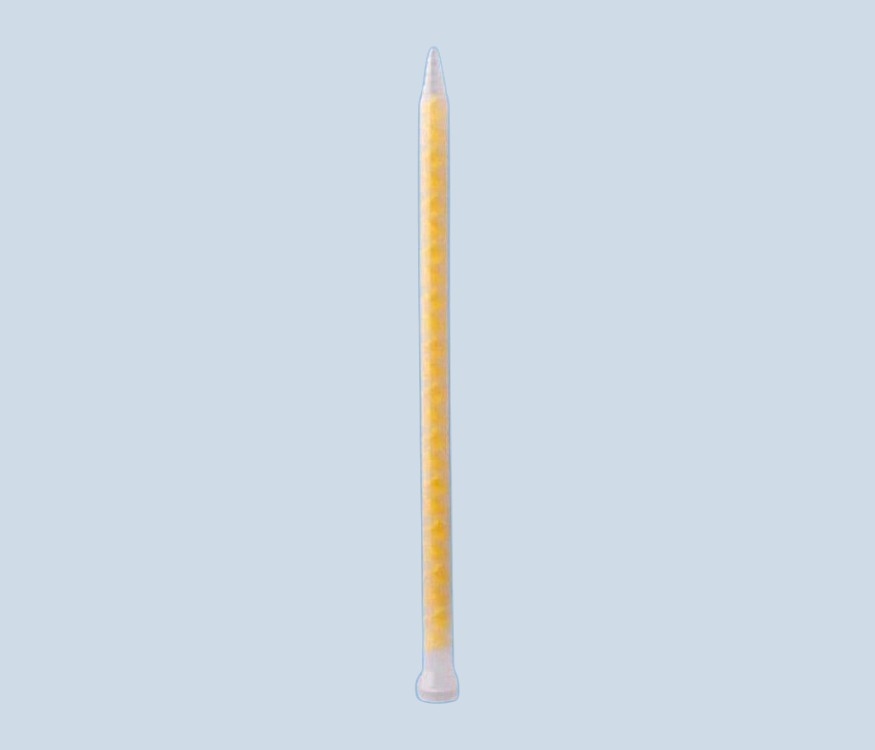

Mix Nozzle 10mm ID x 18 EL MS10-18T pk/10
Product Code: MS10-18T-10
Price: £13.50
Description
MS-Series (Yellow) Static Mixers for Machine Dispensing Systems
Static
Mixers attach to both metering, mixing, and dispense machines and to dual
cartridges. Static Mixers provide an even mixing of two-part materials
without the hassle of hand mixing.
The bell mouth is the
material entry end of the nozzle and the part that fits over the meter
mix machine exit manifold. Static mixing elements inside the body of
the nozzle are manufactured from high grade polyacetal to withstand the
higher pressures of metering and mixing machines. Static mixer
housings are polypropylene.
Pricing is for a sealed pack of 10 nozzles.
Pricing is for a sealed pack of 10 nozzles.
Part ID: MS 10-18T - 102513
Material: Polypropylene, Polyacetal
Colour: Natural Outer, Yellow Elements
Inner Diameter: 10.0mm
Outer Diameter: 14.0mm
Mixer Length: 214mm
Nozzle Tip Diameter: 3.0mm
Housing Bell Mouth Diameter: 16.7mm
No. of Elements: 18
Retaining Method: 7/8"-9 Thread
Material Volume: 12.3ml
Max. Pressure: 22 BAR (319 PSI)
Commodity Code: 39269097
Brand: Sulzer Mixpac MedMix
Pack Size: 10 Pieces
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for mix machines
- Silicone-free plastics
- Safe for use to 100 psi
- Stepped nozzle end
- Supplied in sealed packs of 10
