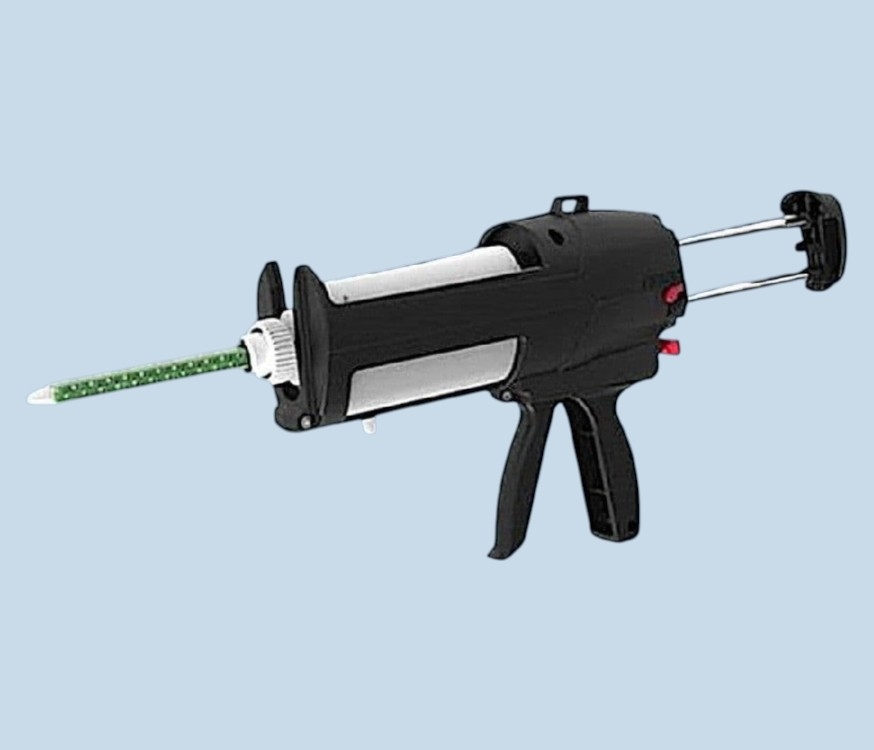

200ml 10:1 Manual Dual Gun DM2X 200-10-52-01
Product Code: DM2X-200-10-51-01
Price: £140.00
Description
New DM2X Series Applicator Guns
For epoxies, adhesives and other materials that are supplied in 200ml dual side-by-side 10:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of these dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.
This is a lightweight hand trigger operated cartridge gun supplied ready to use with cartridge ratio's. The DM2X Series guns are covered by a 2 year warranty and feature a very easy trigger action and light weight.
Exceptional Dispensing
Part ID: DM2X 200-04-52-01
Materials: Reinforced Aluminium/ Steel
Colour: Black
Size: 200ml 10:1 Ratio
Weight: 1.60kg
Length: 323.72mm
Width: 82.15mm
Height: 234.98mm
Boxed Dimensions: 586mm x 385mm x 111mm
Maximum Thrust: 5.2kN ( 520kg), 3.7mm stroke
Warranty: 2 Years
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
For epoxies, adhesives and other materials that are supplied in 200ml dual side-by-side 10:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of these dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.
This is a lightweight hand trigger operated cartridge gun supplied ready to use with cartridge ratio's. The DM2X Series guns are covered by a 2 year warranty and feature a very easy trigger action and light weight.
Exceptional Dispensing
Unique dual drive mechanism: Synchronized movement of plunger rods enables superior metering results against comparable dispensers.
Rigid tool frame: Stabilizes and supports the cartridge even for viscous products under high force applications.
Ratio selector switch: Ensures superior metering quality for all ratios. Now also for 200 mL range.
Rigid tool frame: Stabilizes and supports the cartridge even for viscous products under high force applications.
Ratio selector switch: Ensures superior metering quality for all ratios. Now also for 200 mL range.
Flexibility
The all-in-one solution: Conversion kits allow 1:1, 2:1, 4:1 and 10:1 cartridges to be used in the same DM2X dispenser instead of using four separate dispensers; universal trays will also fit the pneumatic versions.
Optimal for demanding environments: the DM2X is ideal for applications where sparks are not allowed and battery tools cannot be used, or where air supply is not possible.
Ergonomics & Design
Effortless operation: Trigger and brake release lever are designed for jam-free operation under high force or back pressure.
Easily accessible controls: Trigger and retract button can be reached with one hand by both right- and left-handed users.
Modern & functional design: Improved handle ergonomics for more comfort and control; new up-to-date look & feel of the tool.
Effortless operation: Trigger and brake release lever are designed for jam-free operation under high force or back pressure.
Easily accessible controls: Trigger and retract button can be reached with one hand by both right- and left-handed users.
Modern & functional design: Improved handle ergonomics for more comfort and control; new up-to-date look & feel of the tool.
Drive System:
Dual drive rods to simultaneously push A and B plungers
Dual drive rods to simultaneously push A and B plungers
Precision:
Ratio selector switch (now also on 200ml) to improve metering and mix quality for 2:1, 4:1, and 10:1 products and those with viscosity difference between A and B
Ratio selector switch (now also on 200ml) to improve metering and mix quality for 2:1, 4:1, and 10:1 products and those with viscosity difference between A and B
Strength:
Frame design provides support which limits off ratio
Frame design provides support which limits off ratio
Flexibility:
Interchangeable cartridge trays and plungers for quick and easy configuration for multiple cartridge ratios
Interchangeable cartridge trays and plungers for quick and easy configuration for multiple cartridge ratios
Cartridge Compatibility:
Sulzer C, F, Blueline, J System (Quadro 200 & 400ml)
Sulzer C, F, Blueline, J System (Quadro 200 & 400ml)
Part ID: DM2X 200-04-52-01
Materials: Reinforced Aluminium/ Steel
Colour: Black
Size: 200ml 10:1 Ratio
Weight: 1.60kg
Length: 323.72mm
Width: 82.15mm
Height: 234.98mm
Boxed Dimensions: 586mm x 385mm x 111mm
Maximum Thrust: 5.2kN ( 520kg), 3.7mm stroke
Warranty: 2 Years
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Easy hand lever leverage
- For use with 200 ml size Cartridges
- No conversion required between 10:1 cartridges
- Very light weight gun
- Easy release push button to pull back plunger rod
- Hammered Finish Metal and robust plastic finish
- Slide in/Top Load
