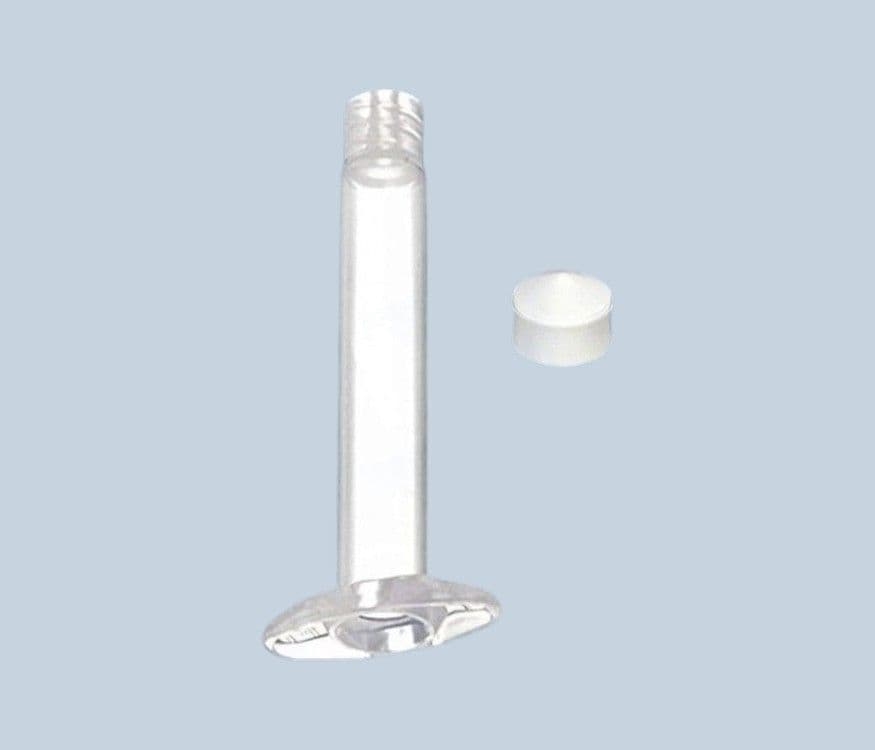

3cc Clear Barrel White Piston Kit AD903-NW pk/500
Product Code: 903-NW-500
Price: £180.00
Description
Adhesive Dispensing Ltd branded 900 series premier dispensing syringe barrels and pistons are silicone and chloride- free and designed to work with dispensing equipment - either manually or on a pneumatic dispenser. The syringe barrels are made from low friction polypropylene to ensure accuracy, repeatability and productivity. Features a double Helix Luer lock for secure dispense tip attachment. Our products are supplied with a no-quibble guarantee against fault or defect.
900 Series Syringe Barrel Kits
For your convenience these syringe barrels and white standard wiper pistons are packaged together without pistons inserted. Kits with red flat walled pistons or black rubber pistons are also available.
900 Series Syringe Barrels
Unique ultra-low draft construction of inner diameter yields high accuracy and stability. They are comprised of industry compliant silicone and chloride free, low friction polypropylene. Available in three different colours: Natural for most generic applications, amber provides protection of UV/visible light block (up to 520nm), but with the ability to see material inside the barrel; and black for total light block. Supplied in sealed packs.
900 Series Air Powered Pistons
Spread the pressure evenly across, using a piston for consistent dispensing of even high viscosity material. Smooth fit wiper pistons (white) provide a complete seal for low viscosity fluid up to thick pastes. Supplied in sealed packs.
Maximum operating pressure is 100 psi (6.9bar). These parts ship direct from stock in a kit of (500) barrels and (500) pistons.
Specifications:
Barrel Material: High Density Polypropylene (HDPP)
Barrel Volume Capacity: 3cc - 3ml
Barrel Overall Length: 73.60mm - 2.897"
Barrel Outer Diameter 11.50mm - 0.452"
Barrel Inner Diameter 9.50mm - 0.374"
Barrel Flange Width 1.23" (31.24mm)
Barrel Hole Outlet Size 0.118" (3.00mm)
Barrel Colour Natural (Clear)
Piston Colour: White
Piston Material: Polyethylene
Mfg. Part AD903-NW-500
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Silicone and chloride free Industrial grade safe to 100 psi
- Resistant to aggressive fluids and solvents
- Wide flanges for secure air attachment
- Luer lock tip attachment on barrel
- Dual blade white wiper piston
- Zero draft inner walls for precision
